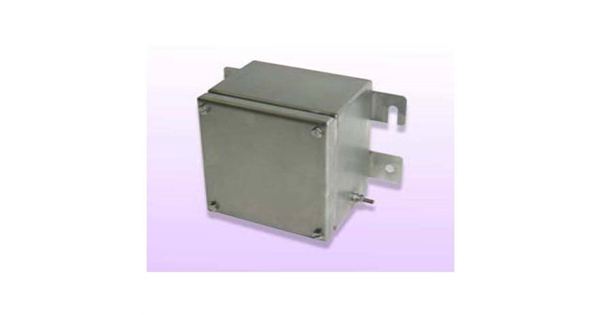

SS Enclosure ESSX6 Exe 510x780x140mm

IP66 ATEX - Ex-e Q2015/53944-0/MI Item 1

Varenr:
ESSX6.Q53944-01
ESSX6.Q53944-01 Abtech  SS Enclosure ESSX6 Exe 510x780x140mm IP66 ATEX - Ex-e Q2015/53944-0/MI Item 1
ESSX6.Q53944-01 Abtech  SS Enclosure ESSX6 Exe 510x780x140mm IP66 ATEX - Ex-e Q2015/53944-0/MI Item 1

ESSX61404GPABCD

Stainless Steel 1.4404 (BS EN 10088-1 1995)
SSX 6.
Size: 510x780x140mm.
4 Gland Plates (Finish: Orbital)
IP Rating: IP66.
Certification Level: ATEX and IECEX - Ex e Apparatus certified (Suitable for use in Zone 1/21 Areas).
Temperature Rating: T6/T5.
Ambient Temperature (Degrees C): -50 to +40 and -50 to +55.

Entries:
Side C: B/Drain x 1, 20.5mm x 5
Terminals (1 x WDU2.5WEGR)
End Plates (1 x WAP2.5-10WEGR)
End Stops (2 x EW35)
Numbering (1 (qty and size TBC))
Mounted on 1off TS35UNSL rail

Enclosure Earth Stud: 1 x EEAESM10SS Side B
Door Earth Stud: 1 x EADESM6SS
Gland Plate Earth Stud: 1 x EAGPESM6SS (Position 20mm, 20mm)
Abtech Gel Label (1 x LABTGELCL)
Main Client Label:
Material: Traffolyte
Legend: TBA
Label Size: 20mm x 80mm
Colour: White/Black/White
Fixing Method: Screwed

External Hinges:
Blanking Plugs: 5 x EAPM20CAP.
Breather Drain: 1 x EABDM2010SS.

Other Items:
5 x ABLNM20NY (Locknut M20 Nylon).
5 x ABWM20NE (Washer M20 Neoprene OD.28mm x 3mm thick).




Note 1: Unless specified otherwise all machining tolerance shall be class ‘m’ to BS EN 22768-1:1993, except for circular cable gland entries in junction boxes where the tolerance shall be +/- 0.25mm for hole sizes and +/- 2.0mm for hole positions. Where such entry positions are not specified they will be located at our discretion.
Note 2: Where the quotation is for hazardous area certified product please refer to the attached detailed specification sheet; in particular the permitted areas of use.
Note 3: Where applicable, stated delivery period commences upon receipt of final approved drawings.
Note 4: Unless otherwise stated, carriage and packing charges are based upon a single delivery. If you decide to receive goods on multiple deliveries we reserve the right to levy additional carriage charges.
Note 5: Whilst we make every effort to correctly interpret your requirements, please be aware that it is your responsibility to ensure that the quoted items are checked for suitability against your original enquiry. Orders subsequently received which reference this quotation, will be treated as an order for the items quoted above and not for the items detailed in your original enquiry.
Note 6: Please note that our minimum order charge is NOK 2000.00 (excluding carriage & packing and VAT).
