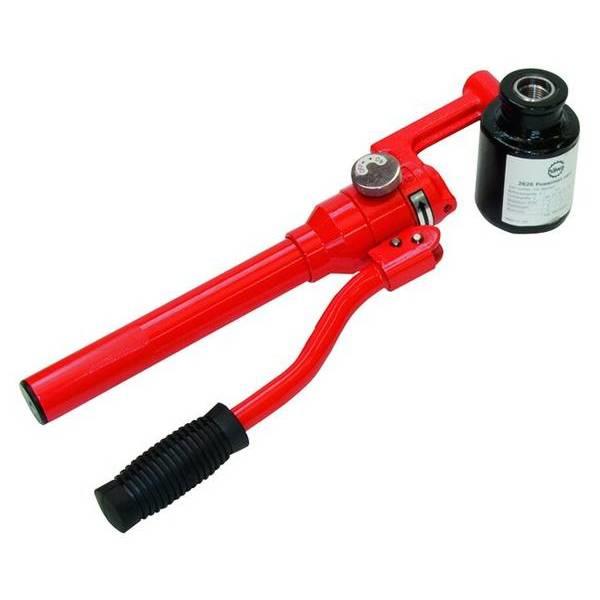

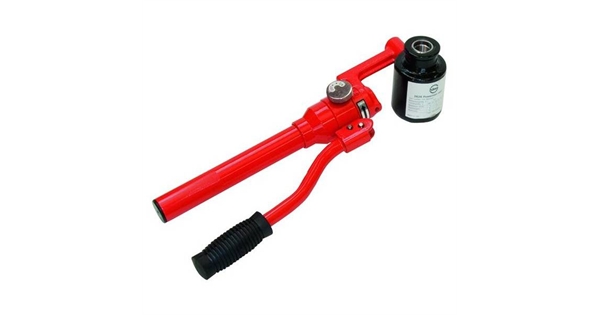

Punching pump Powerman Vario (without punches)



Features
• Punching pump with unique selling point: inimitable cutting cylinder mounting allows 360° rotation on 2 axes without functional limitations.
• Conveniently practical in hard to reach spaces.
• With the 19 mm actuation screw, cut-outs of 80 mm in a 3 mm sheet steel are possible.With lesser metal thickness, larger cut-outs possible.

Product Description
• Operation in hard to reach spaces possible through rotating and pivoting stamping cylinder
• Easy operation and control through punching center, since the die is directly on the unit
• Product weight: 2.46 kg without inserts
• Compact design: length: 360 mm
• With the included threaded bush, tools with a 9.5 actuation screw, can also be used.
• Solid construction



Technical Data
• Suitable for:
  • Round punches up to Ø 80.0 mm
  • Square punches up to 68 mm
  • Rectangular punches up to 96 mm diagonal

• Max sheet metal thickness regarding above-mentioned cross-sections:
  • Sheet steel up to maximum 3.0 mm
  • Stainless steel up to maximum 2.0 mm
  • Aluminium up to maximum 4.0 mm
   (Depending on punch size)
• Punching force: 50 kN
• Oil filling: 0.17 l
• Screw housing Ø: 19 mm; 0.75

Scope of Delivery
• Manual hydraulic punch
• 2 actuation screws: Ø 9.5 mm and Ø 19 mm
• 1 reducing bushing
• 1 metal case

Accessories
• Actuation screw
• Reducing bushing
• spacer sleeve
