Ex-XenonStrobe GNExB2 X21 230vAC CLEAR

21J 1-2Hz GRP/316 IP66 Ex-db-IIC-Gb-T6

Varenr:
GNExB2X21230AB2A1R.7
GNExB2X21230AB2A1R.7 E2S GNExB2X21230AB2A1R/C Ex-XenonStrobe GNExB2 X21 230vAC CLEAR 21J 1-2Hz GRP/316 IP66 Ex-db-IIC-Gb-T6
GNExB2X21230AB2A1R.7 E2S GNExB2X21230AB2A1R/C Ex-XenonStrobe GNExB2 X21 230vAC CLEAR 21J 1-2Hz GRP/316 IP66 Ex-db-IIC-Gb-T6 GNExB2X21230AB2A1R.7 E2S GNExB2X21230AB2A1R/C Ex-XenonStrobe GNExB2 X21 230vAC CLEAR 21J 1-2Hz GRP/316 IP66 Ex-db-IIC-Gb-T6
GNExB2X21230AB2A1R.7 E2S GNExB2X21230AB2A1R/C Ex-XenonStrobe GNExB2 X21 230vAC CLEAR 21J 1-2Hz GRP/316 IP66 Ex-db-IIC-Gb-T6
GNExB2X21230AB2A1R.7 E2S GNExB2X21230AB2A1R/C Ex-XenonStrobe GNExB2 X21 230vAC CLEAR 21J 1-2Hz GRP/316 IP66 Ex-db-IIC-Gb-T6 GNExB2X21230AB2A1R.7 E2S GNExB2X21230AB2A1R/C Ex-XenonStrobe GNExB2 X21 230vAC CLEAR 21J 1-2Hz GRP/316 IP66 Ex-db-IIC-Gb-T6
Lenker: | IECEx | Manual | DoC | ATEX | DataSheet | GA

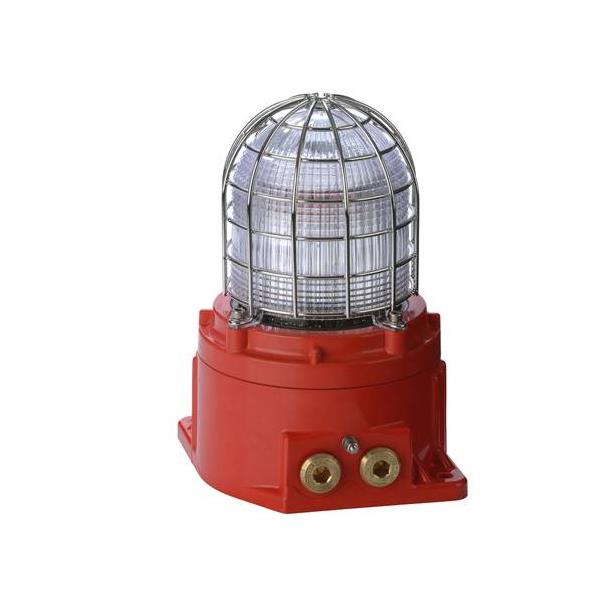

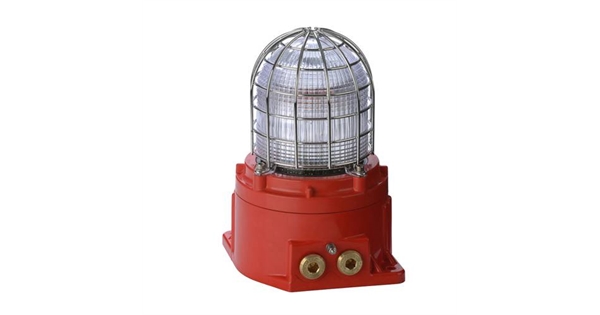

Ex Xenon Strobe GNExB2 X21 230vAC with CLEAR lens


The GNExB2X21 is an IECEx & ATEX approved explosion proof 21 Joule Xenon beacon. The robust IP66 corrosion proof GRP enclosure and extended temperature range ensures the GNExB2X21 is suitable for all Zone 1, 2, 21 & 22 hazardous location signalling applications.

The GNExB2X21 beacon produces over 900cd effective - a very high output Xenon strobe flash as required for efficient signalling in environments with elevated levels of ambient light. The optically enhanced field replaceable colour filter optimises the strobe output and is constructed from UV stable PC. The GRP enclosure features a threaded flame path, triple cable entries and a large termination area - all of which significantly reduce installation time.


Features:

 • Robust, corrosion proof GRP (glass reinforced polyester) enclosure
 • Ingress protection IP66
 • Automatic synchronisation on multi-beacon systems
 • Choice of three flash rates: 1Hz, double and alternate flash
 • DC voltage units feature remote change of flash rate function
 • User replaceable Xenon tube mechanically secured against shock & vibration
 • Glass lens & Stainless Steel guard
 • Field replaceable colour filter (easaly change the lens colour)
 • UV stable PC field replaceable lens colour filter
 • Stainless steel fixings
 • Triple cable entries
 • Duplicate cable terminations (in & out for daisy-chain installations)

Approvals:

 • IECEx UL 15.0003X
   IEC 60079-0 : 2011
   IEC 60079-1 : 2014
   IEC 60079-31 : 2013

 • ATEX DEMKO 15ATEX1448X
   EN 60079-0 : 2012
   EN 60079-1 : 2014
   EN 60079-31 : 2014

Coding:

•II 2G Ex db IIC Gb T4 Ta -50°C to +70°C
•II 2D Ex tb IIIC Db T130°C Ta -50°C to +70°C

Specification:

Energy:21 Joules (21Ws)
Flash rate:1Hz (60 fpm), double flash & alternate flash

Peak Candela:2,100,000 cd - calculated from energy (J)
Effective Intensity cd:1,050 cd - calculated from energy (J)
Peak Candela:181,491 cd - measured ref to I.E.S
Effective Intensity cd:902.69 cd - measured ref to I.E.S

Lens colours:Red, Amber, Yellow, Green, Blue, Clear & Magenta,
Voltages DC: 24vDC; 48vDC
Voltages AC: 115vAC; 230vAC
Ingress protection:IP66

Enclosure:UV stable GRP (glass reinforced polyester)
Colour:Natural Red - can be provided in alternative colours
Cable entries: 3 x M20 ISO (2 stopping plugs inc.)
   Adaptors to M25, 1/2" & 3/4" NPT can be specified
Terminals:0.5 to 2.5mm²

Tube life:Emissions are reduced to 70% after 8 million flashes
Temp. range:-50° to +70°C (-58°F to +158°F)
Weight: 3.5kg / 7.7lbs

 *All candela data is representative of performance with clear lens at optimum voltage.


Part Codes:

(The actual choices for this particular model are highlighted in red)


Version:Part code:

Product type:GNExB2



Type:X21Xenon Beacon - 21 Joule



Voltage: [u]02420-28vDC
04842-54vDC
115110-125vAC
230220-240vAC



Cable Entry Type: [e]A3 x M20x1.5mm
B2 x 1/2" NPT - adaptors
C2 x 3/4" NPT - adaptors
D2 x M25x1.5mm - adaptors
E1 x 1/2" NPT - adaptor
F1 x 3/4" NPT - adaptor
G1 x M25x1.5mm - adaptor
H3 x 1/2" NPT - adaptors
I3 x 3/4" NPT - adaptors
J3 x M25x1.5mm - adaptors



Adaptor/StoppingBBrass
plug material: [m]NNickel Plated
SStainless Steel



Guard material: [s]1A2 304 Stainless Steel
2A4 316 Stainless Steel



Product version: [v]A1IECEx & ATEX



Enclosure colour: [x]RRed
SSpecial - contact E2S for
alternative enclosure colours



Lens colour: /[y] 1Red
2A  Amber (Orange)
3Y  Yellow
4Green
5B  Blue
7Clear (Transparent)
8Magenta


Example part code:GNExB2 X21 [u] [e] [m] [s] [v] [x] . [y]
Makes this part code :GNExB2 X21 230 A B 2 A1  R . 7

Explanation of above
Product type:"GNExB2"
Type:"X21" = 21 Joule Xenon Strobe Beacon
Voltage: [u]"230" = 220-240vAC
Cable Entry: [e]"A" = 3 x M20x1.5mm
Stopping plug[m]"B" = Brass stopping plug
Guard material: [s]"2" = A4 316 Stainless Steel Guard
Product version: [v]"A1" = IECEx & ATEX certified
Enclosure colour: [x]"R" = Red Enclosure colour
Lens colour: .[y] ."7" = (C) Clear Lens colour


Effective Candela lens colour factor:

RedAmber Yellow GreenBlueClear
0.150.510.860.490.121.00


Current Consumption:

Version:Voltage:Current:
24vDC20-28vDC 1032mA
48vDC 42-54vDC460mA
115vAC50/60Hz110-125vAC464mA
230vAC50/60Hz220-240vAC310mA



Assemblies:

The GNExB2X21 is available as a plated assembly configured with up to 4 xenon strobe beacons with or without a GNExJ2 Ex d junction box. Contact us for further information.
